Stainless Steel Architectural Metal Screen For Facade Sunshade Partition Cladding

Name: Stainless Steel Architectural Metal Screen For Facade Sunshade Partition Cladding
Brand: huihao
Price: 1 USD

Wholesale Stainless Steel Architectural Metal Screen For Facade Sunshade Partition Cladding from china suppliers

Brand Name : huihao

Model Number : Architectural Metal Screens

Place of Origin : China

MOQ : Negotiable

Payment Terms : L/C, T/T, Western Union,PAYPAL

Supply Ability : 10000M2 PER MONTH

Delivery Time : 5-8WORK DAYS

Packaging Details : stainless steel architectural metal screens for facades sunshade partition cladding PACKING DETAILS:Plastic foam and carton box for inner packing, Fumigated wooden cases for outer packing also can be as the request.Perforated metal sheet packaging:500-200

material : stainless steel, aluminum

application : facades sunshade partition cladding

product name : architectural metal screens

type : weave, perforated, laser cutting, expaned, crimped

width : less than 6m

length : to be your requirements

weave wire mesh : wire diameter:0.2mm-6mm

punch type : thickness:0.3mm-8mm

laser cutting type : thickness:3mm-20mm

surface treatment : Spray paint, oxidation, plating color

Certification : ISO9001-2008

Contact Now

Stainless Steel Architectural Metal Screens For Facade Sunshade Partition Cladding

Huihao services

supply samples for customer reference before placeing order.
accept small order, 30 square meters
ISO9001-2008 certificate
CAD Drawing design
patterns design
Provide mounting accessories and installation instructions
special package: Color printing logo, laser marking, special tape
Provide door-to-door service, customers no longer need to clear customs
Provide certificate of origin to help customers get more preferential policies

architectural metal screens-stainless steel wire rope mesh

architectiral metal screens is also named decorative wire mesh, cable rope wire mesh and woven wire mesh. it made of stainless steel wire rope

and stainless steel rod. stainless steel 304/316 is common material for architectiral metal screens. others material include copper, brass and aluminum wire.

surface treatments include: powder coated, PDFV and anodic oxidation. common color are gold, white, black, grey and blue.

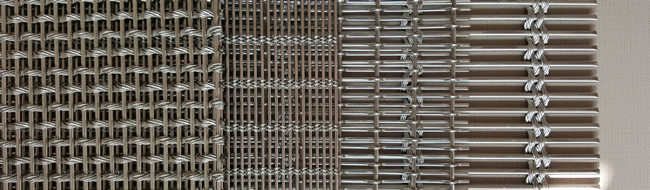

1.Below are three types for one cable rope with stainless steel wire rod as pictures

molde type	HH-ZJ12
Material	Stainless steel	Opening Area	45.9%
cable Diameter	2.5mm	Thickness	7mm
cable Pitch	7mm	Surface	clean &free oil
rod Diameter	2mm	Max Length	36m
rod Pitch	7mm	Max Wide	4M
Weight	6.45kgs/suqare meter	Application	Partition Cladding

ITEMS	HH-Z13
Material	stainless steel	Opening Area	43.8%
cable Diameter	2.5mm	Thickness	5mm
Cable Pitch	6.0mm	Surface	free oil
rod Diameter	2.0mm	Max Width	4m
Rod Pitch	8mm	Max Length	30m
Weight	9.8kgs/square meter	Application	Facade Sunshade

ITEMS	HH-ZJ14
Material	Stainless steel	Opening Area	35.4%
cable Diameter	1.6mm	Thickness	3.8mm
cable Pitch	3.2mm	Surface	free oil
rod Diameter	0.6mm x1.75mm	Max Length	30m
rod Pitch	6mm	Max Wide	4m
Weight	7.3kgs/square meter	Application	Interior / Exterior

2.belows are other common sizes of stainless steel cable rope mesh

design	open area	cable wire dia.	cable pitch	rod dia.	rod pitch	thickness	weight
HHZ-Q1	40%	1x1.8 mm	4 mm	1.5 mm	5.5 mm	5.1 mm	7.74kg/m2
HHZ-Q2	43%	1x2.5 mm	6 mm	2 mm	8 mm	5.5 mm	7.87kg/m2
HHZ-Q3	62%	2x2.75 mm	40 mm	4 mm	14.5 mm	9.5 mm	9.41kg/m2
HHZ-Q4	37.20%	3x0.5 mm	3.5 mm	0.5 mm	1.4 mm	1.3 mm	2.4kg/m2
HHZ-Q5	71%	3x1.6 mm	80 mm	2.5 mm	10 mm	5.7 mm	4.58kg/m2
HHZ-Q6	65%	3x2 mm	80 mm	3 mm	10 mm	7 mm	6.67kg/m2
HHZ-Q7	65.90%	3x2.75 mm	110 mm	4 mm	14.5 mm	10 mm	8.5kg/m2
HHZ-Q8	67%	3x3 mm	110 mm	4 mm	14.2 mm	10 mm	8.6kg/m2
HHZ-Q9	44.30%	4x0.75 mm	26.4 mm	1.5 mm	3 mm	3 mm	5.2kg/m2
HHZ-Q10	62%	4x1 mm	36 mm	2 mm	6.6 mm	4 mm	4.55kg/m2
HHZ-Q11	40%	4x2 mm	50 mm	3 mm	6 mm	7mm	11.2kg/m2
HHZ-Q12	42%	4x2 mm	50 mm	3 mm	6 mm	7 mm	11.8kg/m2

Stainless Steel Architectural Metal Screen For Facade Sunshade Partition Cladding

architectural metal screens application

	For exterior application, it is an ideal alternative for building facade,column cladding, wall coverings,cable shielding mesh, sunshade screen
	For interior, it can be used as room dividers, decorative curtains and ceiling curtains,elevator panel,partition walls
